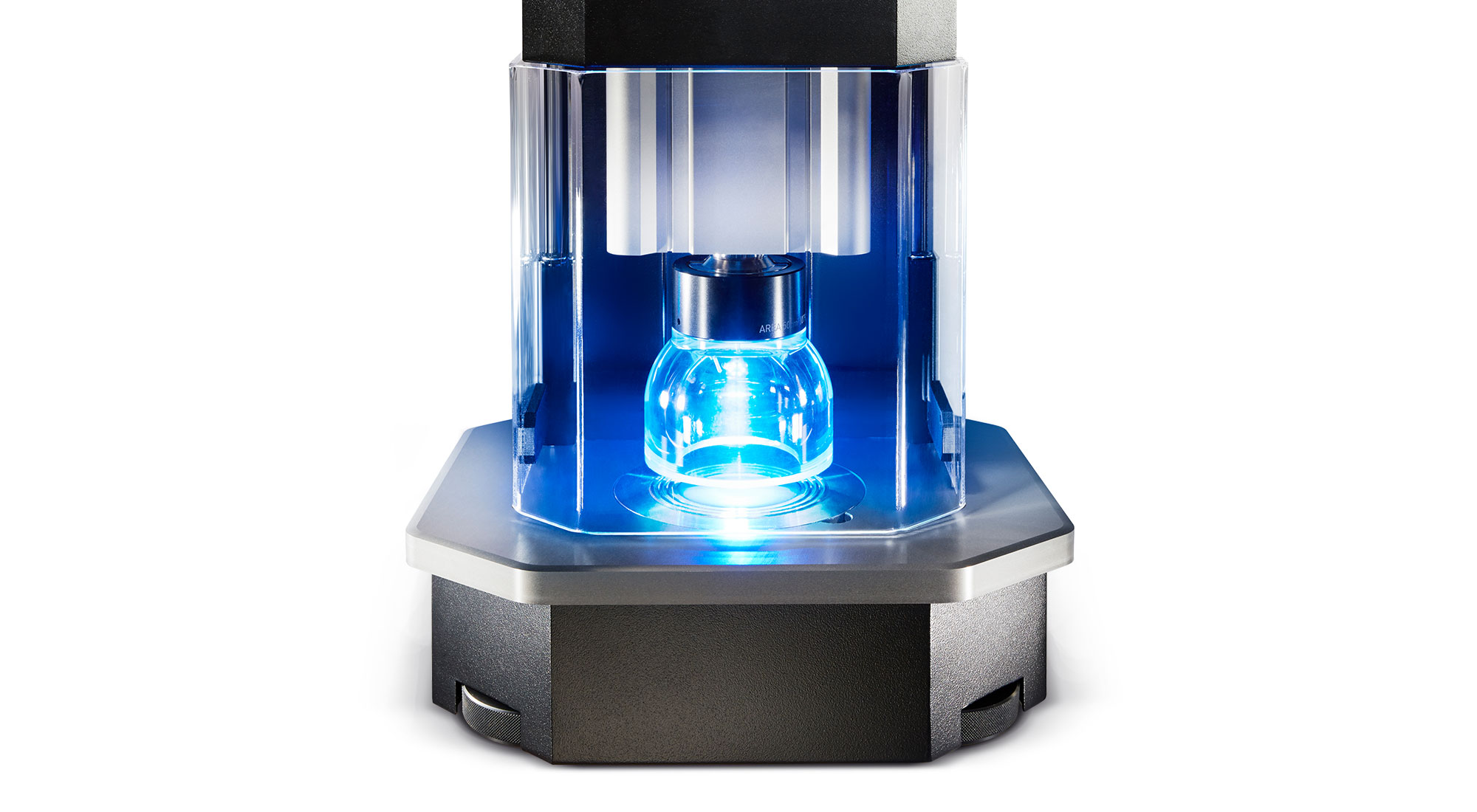

TruBurst
Pneumatic Bursting Strength Tester with TestWise™
Overview
Pneumatic Bursting Strength Tester with TestWise™ software and a range of bursting strength and fatigue tests suitable for knitted textiles, medical textiles, non-wovens, paper and plastics.
Features
Variety of applications
Test a variety of materials including textiles, nonwovens, plastic bags, food packaging, tissues, tin foil and medical products
TestWise™
Simple to use TestWise™software - for faster, more intuitive testing
Five interchangeable domes
With software auto recognition of the dome size. Dome and diaphragm changing is tool-free for faster testing and less downtime
Accuracy
Non-contact laser distension measurement for accuracy and repeatability of test results
Material / End use
Apparel
Medical Textiles
Non-wovens
Plastics
Paper
Sportswear
Military Apparel
Personal Protective Equipment (PPE)
Technical Specification
| Conditioned atmosphere recommended | Yes |
|---|---|
| Positioning | Bench standing |
| Space requirements | Width 40.0cm |
| Depth 52cm | |
| Height 63cm | |
| Approximate net weight | 69.3kg |
| Power | Single phase Yes |
| Rating per phase (A) 0.3 | |
| Watts 60 | |
| Compressed air | Pressure 10 |
| Flow 50 | |
| Pressure range | |
| Upper pressure limit | kPa 1000 |
| psi 145 | |
| kg/cm2 10.20 | |
| bar 10 | |
| kN/m2 1000 | |
| Resolution | kPa 0.2 |
| psi 0.04 | |
| kg/cm2 0.002 | |
| bar 0.002 | |
| kN/m2 0.2 | |
| Distension range | |
| Minimum | mm 0.1 |
| cm 0.01 | |
| inches 0.004 | |
| Maximum | mm 70.0 |
| cm 7.00 | |
| inches 2.756 | |
| Resolution | mm 0.1 |
| cm 0.01 | |
| inches 0.004 |
Standards
Currently viewing all standards
ASTM
- ASTM D3786
ISO
- ISO 13938-2
- ISO 2758 (paper)
M&S
- M&S P27
NEXT
- NEXT TM22
WSP
- WSP 30.2 (nonwoven)
Adidas
- adidas® Group 4.09
Woolmark
- Woolmark TM29
EDANA
- Edana 80.3 (nonwoven)
Additional information
TruBurst is an intelligent bursting strength tester that can perform an extensive amount of burst strength tests on a wide range of materials such as textiles, mechanical supplies, paper, food packaging, mosquito nets, and medical supplies such as wound dressings.
TruBurst provides the unique flow control for M&S P27 and Adidas 4.09. For other instruments of this type, it is necessary for the user to set all features and time the test manually, as well as calculating the results themselves. With TruBurst the process is fully automated, offering tremendous time-savings for the operator.
With warnings to let the user know if the specimen does not burst within the specified time, accurate contactless laser distension measurement ensuring pin point accuracy & extended diaphragm life and five interchangeable domes with automatic recognition of dome size, accelerating testing and minimising downtime, TruBurst is a truly innovative intelligent bursting strength tester.
