ProView

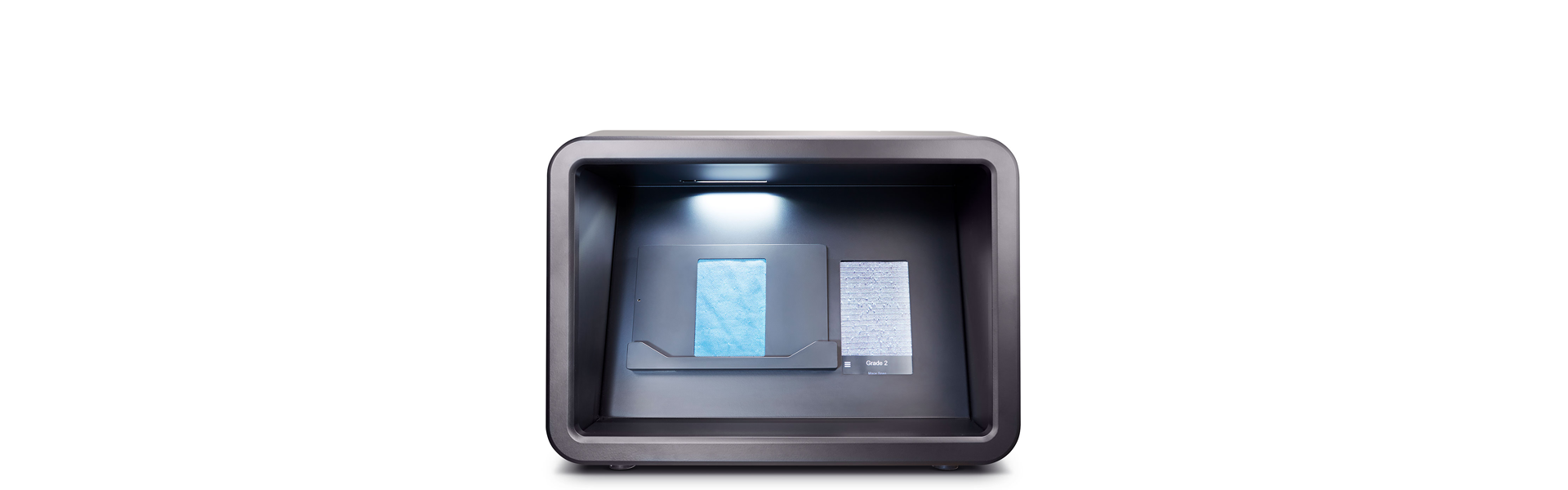

Universal Assessment Viewer

Enquire

Overview

Universal Assessment Viewer with a suite of digital grading photographs for grading pilling and snagging. Ideal for use with Martindale, Orbitor and ProMace.

Features

User friendly

Make the grading process easy and efficient with TestWise Touch™, pre-programmed photographic assessment images. A range of sample holders make the process of assessing and grading the
samples very clear.

Standards driven

For mace snag testing to the ASTM and JIS standards

Pre-loaded images

To grade other test methods including Martindale and Snag Pod.

EMPA pilling standards

Pilling Standard Photographs for EMPA Woven and Knitted standards are preloaded into the ProView to increase the range of images available.

Technical Specification

Space Requirements Height 37.4cm
Width 52.0cm
Depth 32.0cm
Positioning Bench standing
Air / Water supply /Drainage Not required
Conditioning Use within a conditioned atmosphere
Power Requirements 85 to 264V AC 50/60Hz
Single Phase 0.5 / 1 A 20 W
Pre-Loaded Photographic Images
ASTM D 3939 Mace snagging 9 images
SnagPod (complies with BS8479:2008 and BHS TM46) 9 images
BS 5811:1979 & M&S - Woven 5 images
BS 5811:1979 - Single jersey 5 images
BS 5811:1979 - Double jersey 5 images
SM 50 for woven fabrics - Martindale - Plain Weave 5 images
SM 50 for woven fabrics - Martindale - Twill Black 5 images
SM 50 for woven fabrics - Martindale - Twill White 5 images
SM 50 for woven fabrics - Martindale - Woven Blanket 5 images
SM 54 for knitted fabrics - Pilling box - Botany Knitted 5 images
SM 54 for knitted fabrics - Pilling box - - Double Jersey 5 images
SM 54 for knitted fabrics - Pilling box - - Double Jersey 5 images
SM 54 for knitted fabrics - Pilling box - Shetland Knitted 5 images
EMPA Pilling Standard Photographs* - Woven - W1 4 images
EMPA Pilling Standard Photographs* - Woven - W2 4 images
EMPA Pilling Standard Photographs* - Woven - W3 4 images
EMPA Pilling Standard Photographs* - Knitted - K1 4 images
EMPA Pilling Standard Photographs* - Knitted - K2 4 images
EMPA Pilling Standard Photographs* - Knitted - K3 4 images
M&S Pilling 5 images
*Used under licence from Swissatest Testmaterialien AG
