Impulse

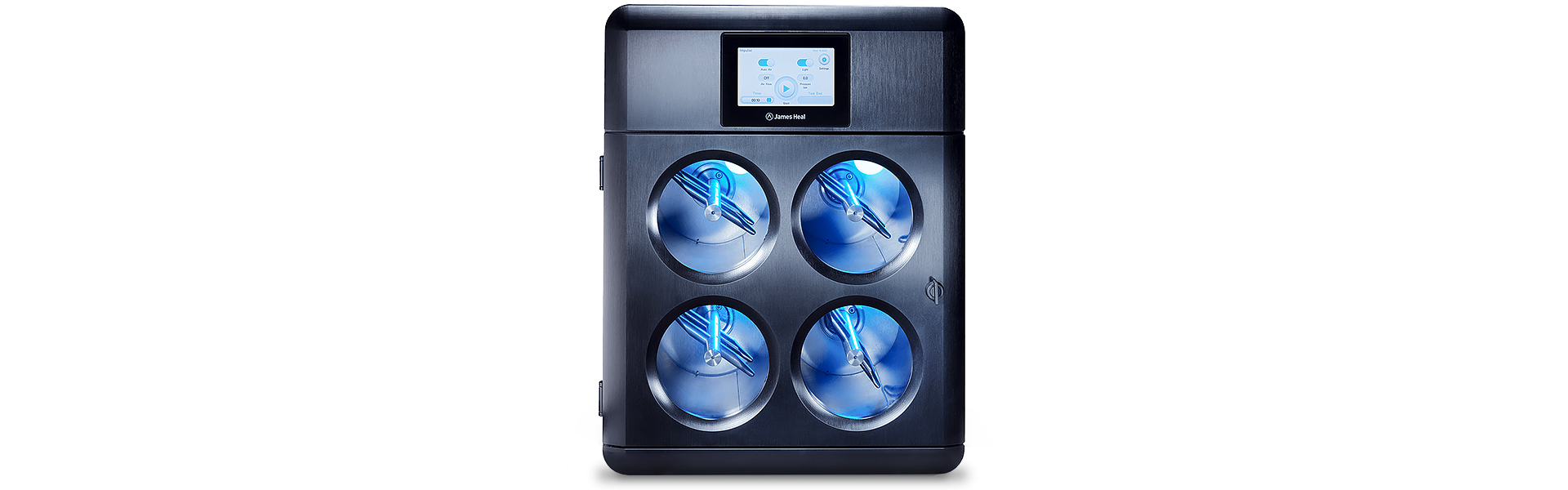

Random Tumble Pilling Tester with TestWise Touch™

Enquire

Overview

Random Tumble Pilling Tester with TestWise Touch™. With interchangeable impellers and superior sample rotation for reliability, accuracy and flexibility.

Features

Variations

Available in 4 or 2 chamber models

TestWise Touch

Intuitive TestWise Touch controls are easy to use in seconds, minimising training time

Interchangable

Interchangeable impellers for greatly improved sample rotation

Cleaner

Dust and lint filters collect lint and loose fibre to create a cleaner working environment

Material / End use

Knitted Fabrics

Woven Textiles

Technical Specification

Conditioned atmosphere recommended Yes
Positioning Bench standing
Space requirements
Impulse - 4 Chamber Height 52.2cm
Width 41.0cm
Depth 57.5cm
Impulse 2 Chamber Height 52.2cm
Width 26.7cm
Depth 57.5cm
Approximate net weight
Impulse - 4 Chamber 46kg
Impulse 2 Chamber 28kg
Power
Impulse - 4 Chamber 115/230V +/-10%
50/60Hz
Watts 135W
Amps 1.2/0.6A
Impulse 2 Chamber 115/230V +/-10%
50/60Hz
Watts 90W
Amps Amps: 0.8/0.4A
Compressed air Pressure 2 to 8
Flow Flow 30 l/min per chamber

Standards

Currently viewing all standards


ASTM
  • ASTM D3512
ISO
  • ISO 12945-3
JIS
  • JIS L1076 method D
Adidas
  • adidas® Group 4.07
AFNOR
  • NF G 07-121
  • NF G 07-132
SAC
  • GB/T 4802.4
SANS
  • SANS 6116
